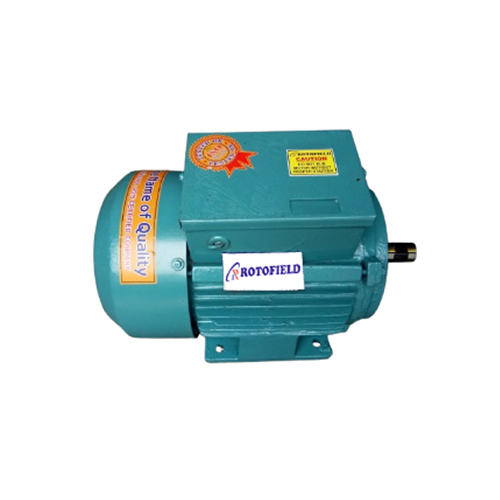

Industrial Electric Single Phase Motor

Get a Price/Quote

MOQ : 10 Units

Industrial Electric Single Phase Motor Specification

Sealed Type
Mechanical Seal

Protect Feature
Drip-Proof

Phase
Single Phase

Efficacy
IE2

Starting Type
Electric Start

Power
1.5 Horsepower (HP)

Usage & Applications
Industrial

Warranty
1 Year

Material
Mild Steel

Features
Premium Quality

IP Rating
ip55

Industrial Electric Single Phase Motor Trade Information

Minimum Order Quantity
10 Units

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Units Per Month

Delivery Time
7 - 10 Days

Main Domestic Market
All India

About Industrial Electric Single Phase Motor

The Electric Single Phase Motor is a premium-quality industrial device designed to deliver consistent performance and reliability. It operates on a single-phase system and boasts an impressive IE4 efficacy for enhanced energy efficiency. The motor features a drip-proof protect design, ensuring durability and safeguarding internal components from external moisture. It comes equipped with an electric start system for smooth and hassle-free operation. The mechanical seal ensures a secure enclosure, while the mild steel construction offers robustness and longevity under demanding industrial conditions. With an IP21 rating, the motor provides adequate protection against solid objects and minimal liquid intrusion. The 1.5 Horsepower (HP) power rating makes it an ideal choice for various industrial applications, ensuring optimal functionality and effectiveness. Offering a 1-year warranty, this motor delivers dependable performance coupled with peace of mind.

TYPE	A	B	C	H	K	L	LL	AA	AB	AC	AD	AE	BB	BC	HA	HC	HF	KK
63S	100	80	40	63	7	207	74	19	119	126	127	.	100	10	2	169	190	20
71M	112	90	45	71	7	238	116.5	19	131	140	126	95.5	110	10	2	197	165.5	20
80M	125	100	50	80	10	278	75	27	157	160	145	102	127	13.5	4	208	224	20
90S	140	100	56	90	10	322	100	28	164	178	153	110	150	13.5	4	218	242	20
90L	140	125	56	90	10	322	100	28	164	178	153	110	150	13.5	4	218	242	20
100L	160	140	63	100	12	368	117	28	164	208	125	120	170	15	4	250		20

Type	IM BS mounting						IM B14 mounting
Type	M	N	P	S	T	LA	M	N	P	S	T	LA
635	115	95	140	10	3	7	75	60	90	M5	2.5	7
718M	130	110	160	10	3.5	7	85	70	105	M6	2.5	9
80M	165	130	200	12	3.5	12	100	80	120	M6	3	9
90S	165	130	200	12	3.5	10	115	95	140	M8	3	9
90L	165	130	200	12	3.5	10	115	95	140	M8	3	9
100L	215	180	250	15	4	11	130	110	160	M8	3.5	22
